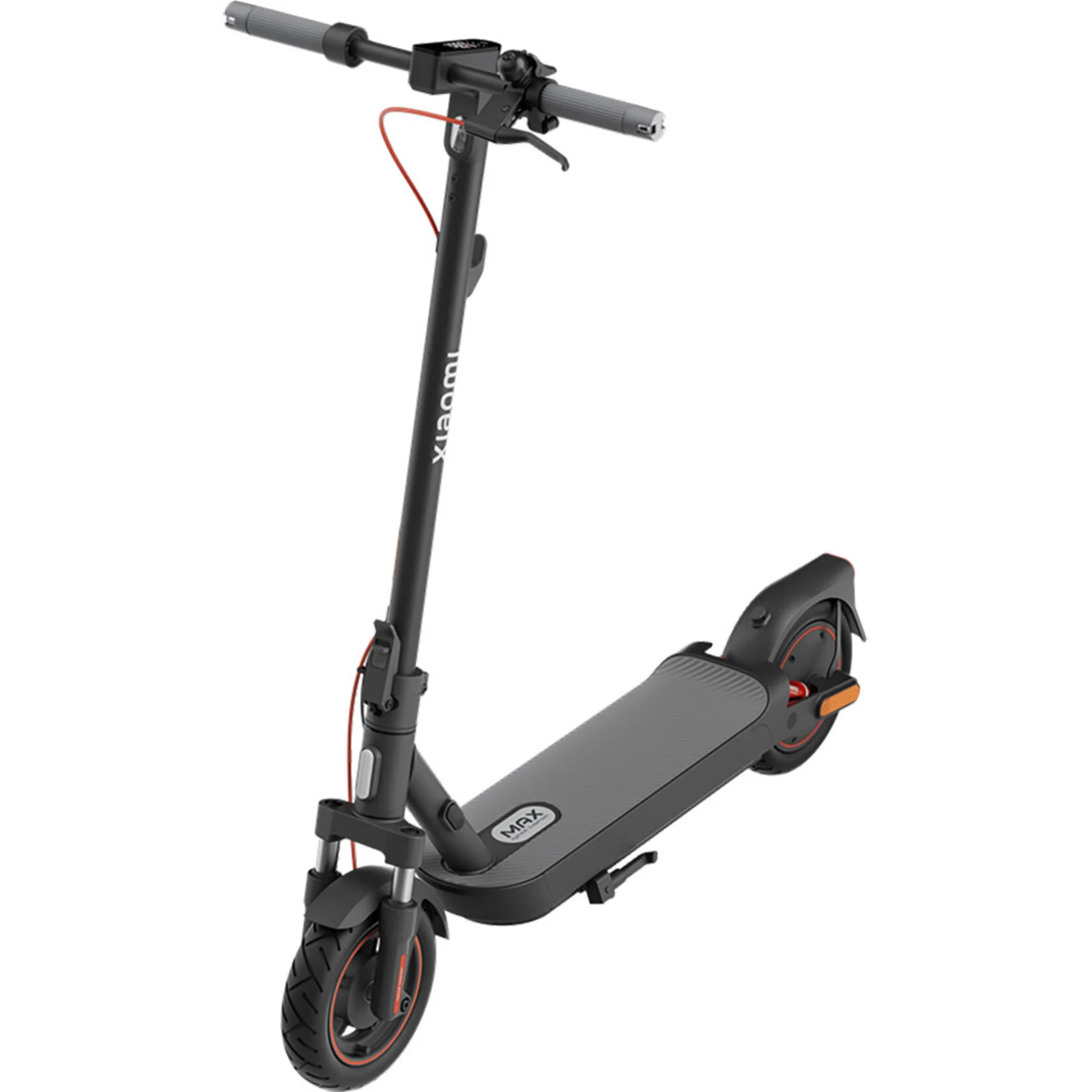

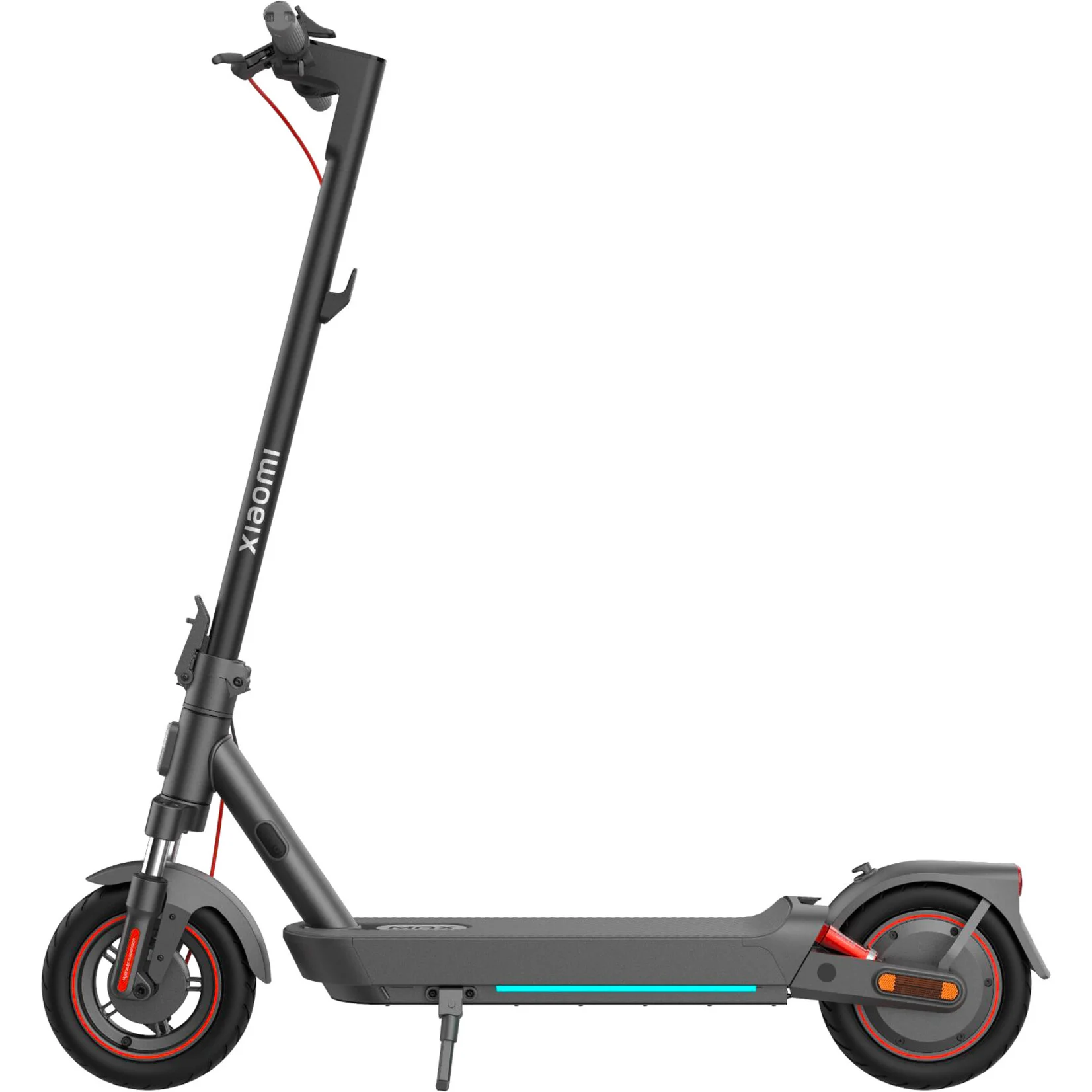

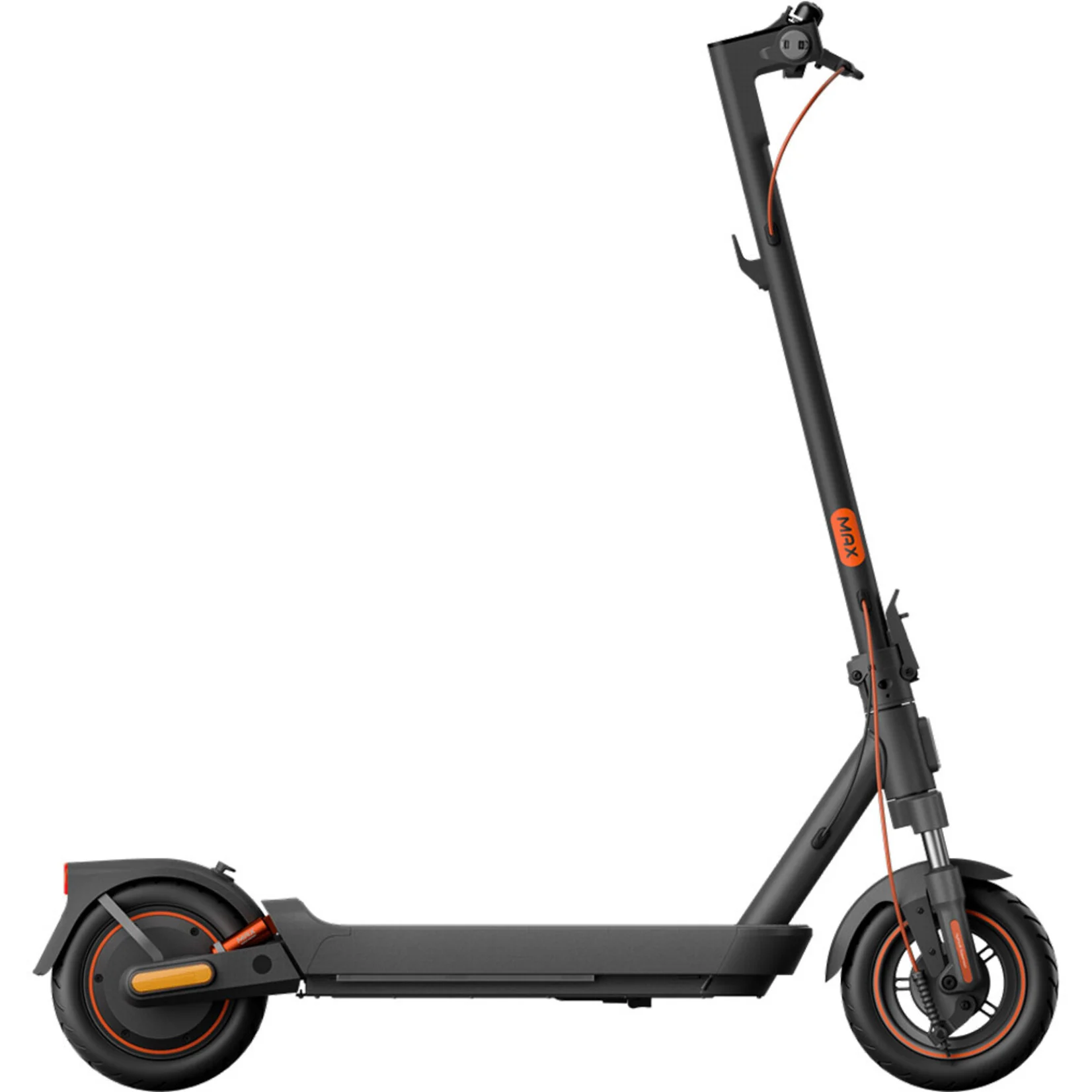

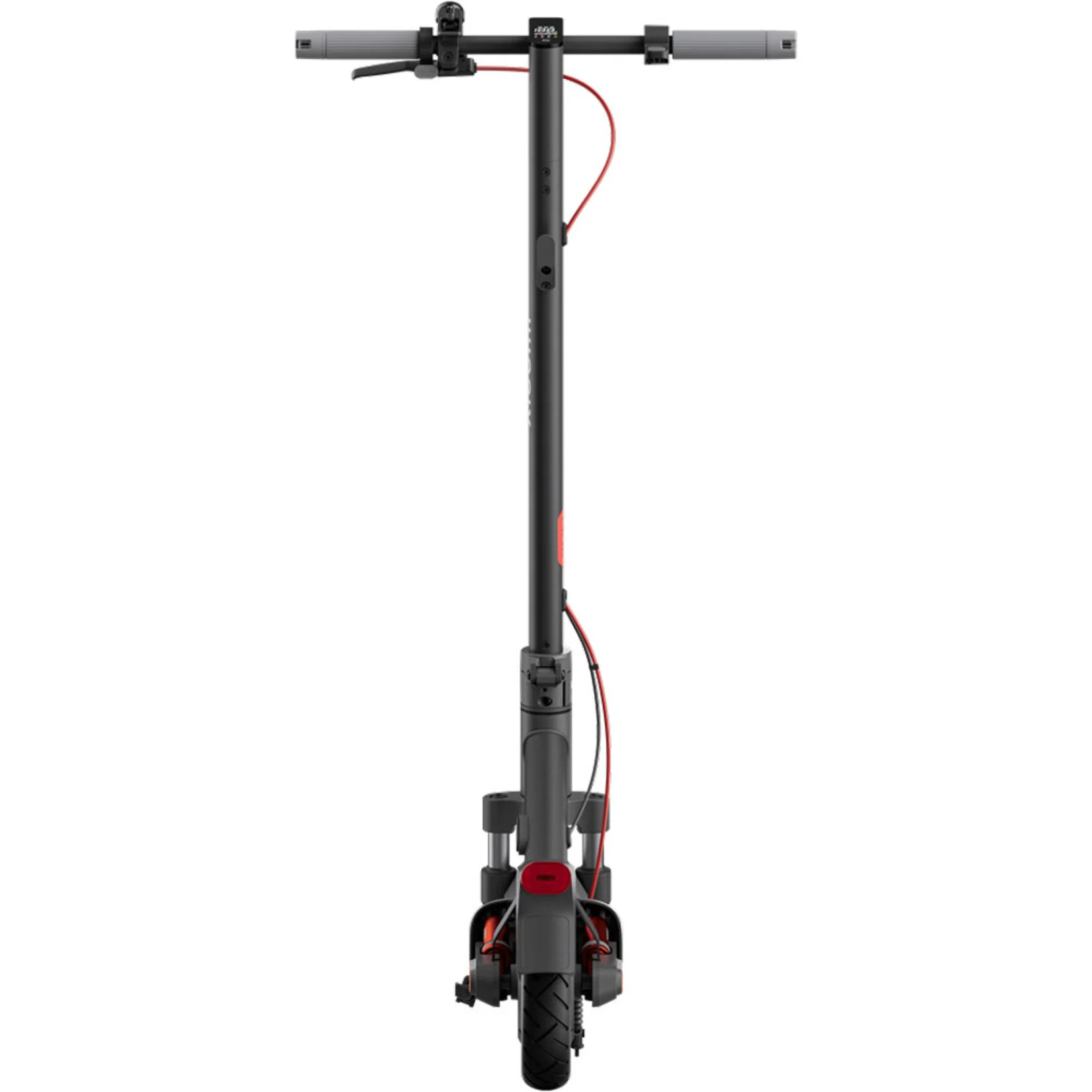

Xiaomi Electric Scooter 5 Max

Performance

• Speed: 25 km/h
• Power: 400W
• Maximum power: 1000 W
• Pitch angle: 12° / 22%
• Drive type: Rear-wheel drive

• Motor type: brushless rear hub motor

Battery & charging

• Range: 60 km
• Battery size: 477 Wh
• Battery voltage: 48 V
• Battery capacity: 10.2 Ah
• Battery type: Li-ion
• Cell manufacturer: Not stated
• Charging time: 3 h with fast charger, 8 h
• Charging voltage: 54.6 V
• Charging current: 1.3 A

• Power management: BMS: short circuit, overcurrent, overcharge and overdischarge protection

Tires

• Tire diameter: 255 mm / 10″
• Tire width: 65 mm / 2.5″

• Tire type: 10 inch tubeless tires

Brakes

• Front: Drum brake
• Rear: E-ABS anti-lock electric brake

Suspension

• Front: Telescopic fork with hydraulic suspension
• Rear: Double-sided swingarm

Lights

• Front light: LED headlight with vertically limited light pattern
• Taillight: LED taillight with brake light and reflector
• Reflectors: on the sides, front, rear
• Indicators: integrated into the bar

Frame & dimensions

• Weight: 22.3 kg
• Load capacity: 120 kg

• Frame material: Aircraft aluminum
• Folding mechanism: Quick folding mechanism
• Foldable bar: No
• Size in running order (L * W * H): 1192*586*1272mm
• Folded size (Length): 1192 mm
• Bar height from the ground: 127 cm
• Bar width: 58 cm
• Driver height recommendation: 120 – 200 cm

Display and smart features

• Driving modes:
• Display: LED display: speed, battery status, odometer, driving mode, flashes, etc.
• Connectivity: Application: Xiaomi App
  Compatibility: Android 4.3 or later, iOS 9.0 or later
• Smart features: driving mode customization, electronic locking, driving statistics, engine brake adjustment, Bluetooth connection, automatic operating system updates

Change

• Color: Red, Dark gray
• Protection class: IPX5

• Exact model name: Xiaomi Electric Scooter 5 Max GL
• Beep: Yes
• Optional equipment: TCS: Traction Control System
• Sales package contents: charger, instruction manual, rod screws and tool
